Drywall & Chipboard Screws
Bugle Head Drywall Screws
(Fine Thread & Coarse Thread)
Phillips Bugle Head Drywall Screws With Drilling Point
High-performance self-drilling fastening solutions
Pan Framing Head Drywall Screws
Specialized fastening solutions with a flat bearing surface
Bugle Head Drywall Screws (Fine Thread & Coarse Thread)
Professional-grade fastening solutions engineered for fast installation into metal studs, timber framing, and plasterboard.
High-tensile steel bugle head drywall screws featuring a countersunk head design that sinks smoothly flush into plasterboard without breaking the paper face. Available with Fine Thread (designed for light-gauge steel framing/profiles) and Coarse Thread (designed for rapid anchoring into wood studs).
Head Type: Bugle Head with Phillips Drive (PH2)Point Type: Sharp Piercing Point (Gimlet Point)Material / Finish: Black Phosphate, Grey Phosphate, or Yellow/Zinc PlatedStandards: DIN / ISO / ANSI Standard Compliant

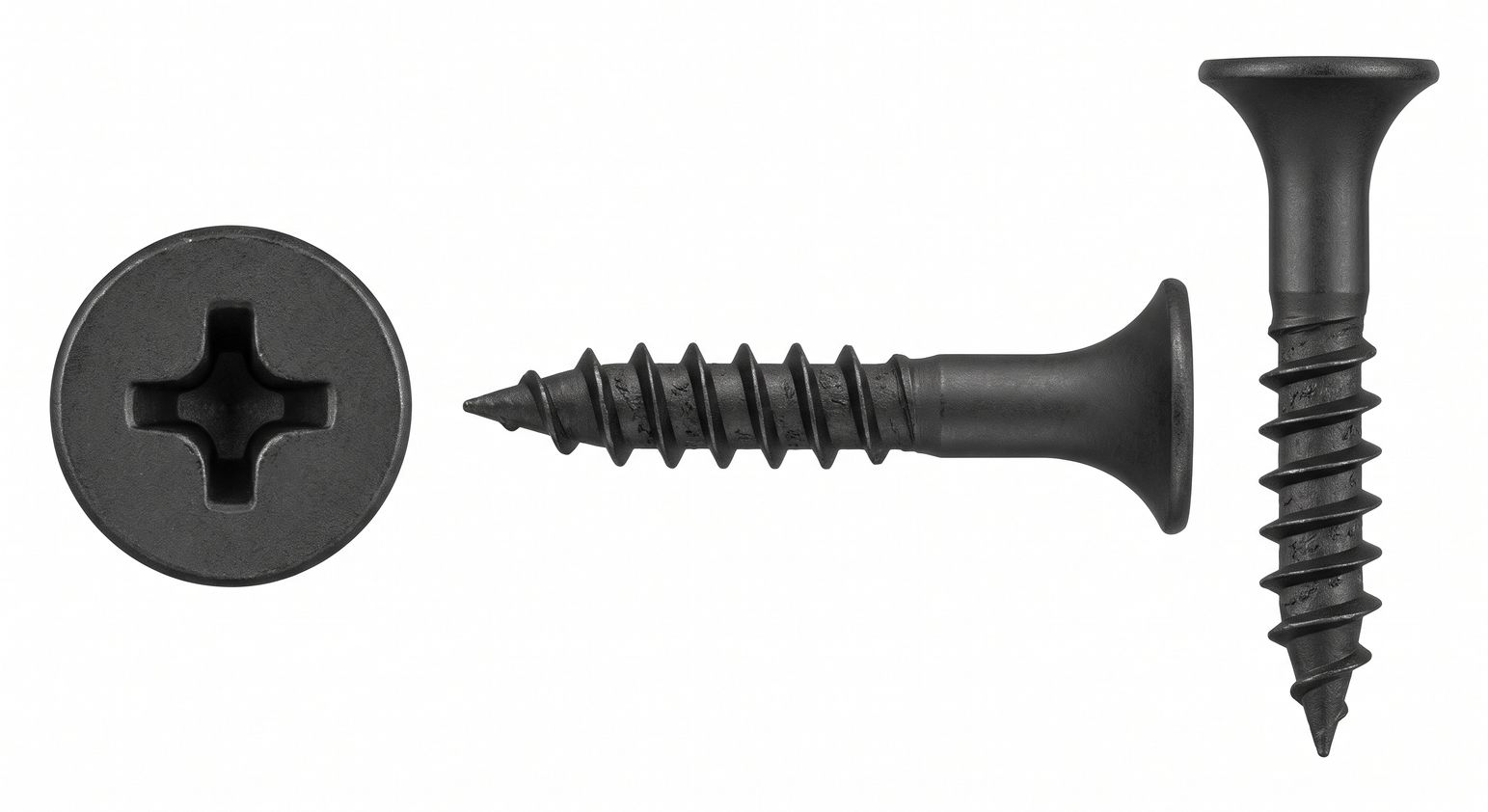

Product visuals & schematics
Technical specifications & dimensions
All dimensions are nominal and may be customized for OEM or private label programs.
Table A: Standard Metric Dimensions (Fine & Coarse Thread)
Thread Diameter (d)
Head Diameter (dk)
Head Height / Specs
Available Length Range (L)
3.5 mm
7.9 – 8.5 mm
Bugle Head / PH2
16 mm – 55 mm
3.9 mm
7.9 – 8.5 mm
Bugle Head / PH2
65 mm – 70 mm
4.2 mm
7.9 – 8.5 mm
Bugle Head / PH2
65 mm – 102 mm
4.8 mm
8.8 – 9.4 mm
Bugle Head / PH2
90 mm – 152 mm
Table B: Imperial & Popular Metric Sizes
Thread Size
Available Lengths (L)
Primary Application
#6 (3.5 mm)
1", 1-1/4", 1-3/8", 1-5/8", 2", 2-1/4"
Light metal profiles & wood studs
#7 (3.9 mm)
1-5/8", 2", 2-1/2", 3"
Double-layer drywall & general framing
#8 (4.2 mm / 4.8 mm)
2-1/2", 3", 3-1/2", 4", 5", 6"
Heavy-duty plasterboard & thick timber
Phillips Bugle Head Drywall Screws With Drilling Point
High-performance self-drilling fastening solutions engineered for rapid penetration into thick metal studs and structural framing without pre-drilling.
Overview
Engineered with a specialized drilling tip, these bugle head drywall screws effortlessly cut through heavier gauge metal framing. The bugle head ensures a flush finish in plasterboard without tearing the paper surface.
Key Specifications
Head Type: Bugle Head
Drive Type: Phillips (PH2)
Point Type: Self-Drilling Tip / Drilling Point
Material / Finish: Black Phosphate, Zinc Plated, or Dacrotized
Standards: DIN / ISO / ANSI Standard Compliant

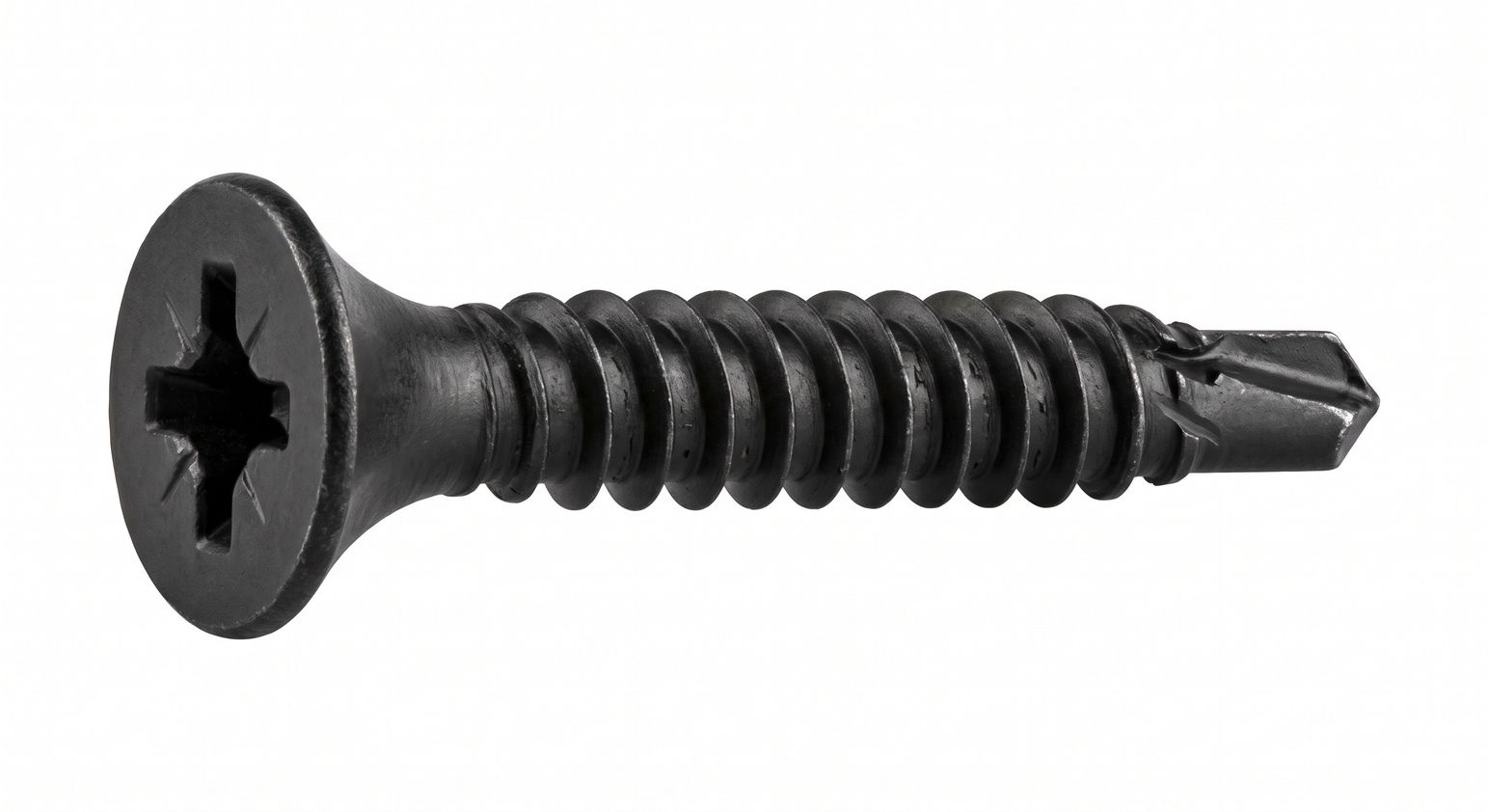

Product Visual
Representative image. Exact appearance may vary by coating and size.
Technical Schematic
Schematic showing head diameter, thread pitch, drilling tip geometry, and total length.
Dimensions & Availability
Standard metric and imperial sizes for self-drilling drywall screws with drilling point.
Table A: Metric Dimensions
Thread diameter × length (d×L) in millimeters.
3.5 × 13 mm
3.5 × 16 mm
3.5 × 19 mm
3.5 × 25 mm
3.5 × 28 mm
3.5 × 32 mm
3.5 × 35 mm
3.5 × 42 mm
3.5 × 45 mm
3.5 × 51 mm
3.5 × 55 mm
3.5 × 64 mm
3.5 × 76 mm
4.2 × 76 mm
Table B: Imperial Dimensions
Size designation in inches.
#6-20 × 1"
#6-20 × 1-3/8"
#6-20 × 1-3/4"
#6-20 × 2-1/4"
#8-18 × 1-3/8"
#8-18 × 1-3/4"
#8-18 × 2-1/4"
Need Custom Sizes, Packaging, or Wholesale Pricing?
We supply bulk quantities with customized surface treatments, packaging, and private label options.
Pan Framing Head Drywall Screws
Specialized fastening solutions with a flat bearing surface, engineered for securely attaching metal tracks and studs in drywall framing systems.
Overview
Pan framing head screws (also known as fillister head framing screws) feature a flat underside that provides a large, stable bearing surface. This design clamps metal profiles tightly together without crushing or deforming the thin-gauge metal tracks.
Key Specifications
Head Type: Pan Framing Head / Fillister Head
Drive Type: Phillips
Point Type: Available in Sharp Point (Self-Tapping) and Drilling Point (Self-Drilling)
Material / Finish: Black Phosphate or Zinc Plated
Standards: DIN / ISO Standard Compliant
Product Visual
[Insert hi-res photo of Pan Framing Head Drywall Screw]

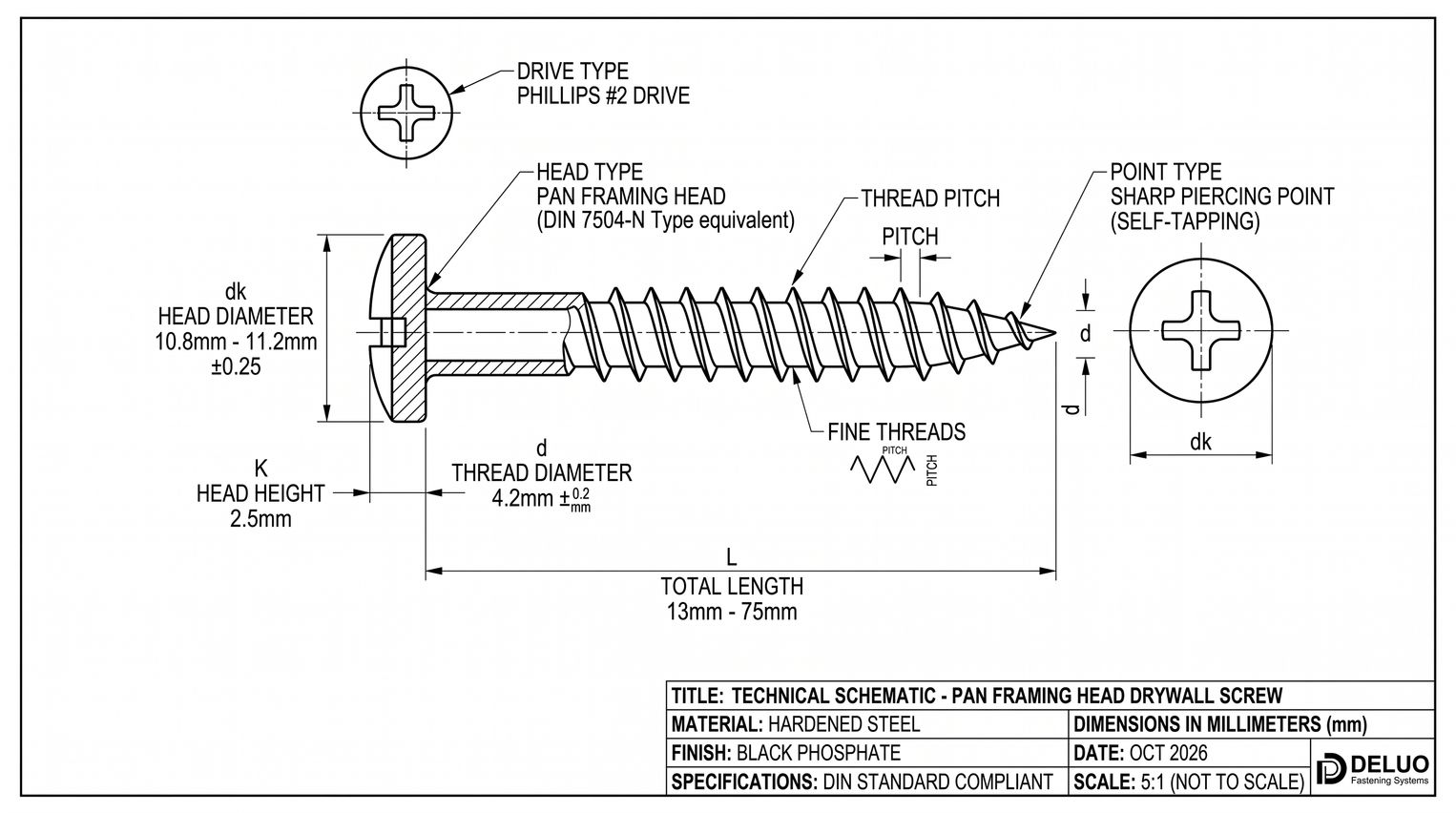

Technical Schematic
[Insert technical drawing showing head diameter (dk), head height (K), thread diameter (d), and total length (L)]
Technical Specifications
Metric dimensions according to standard drywall framing screw catalog.
Thread Diameter (d)
Head Diameter (dk)
Head Height (K)
Available Length Range (L)
4.2 mm
10.6 – 11.2 mm
2.5 mm
13 mm – 75 mm
Need Custom Sizes, Packaging, or Wholesale Pricing?
We supply bulk quantities with customized surface treatments, packaging, and private label options directly from the factory.
